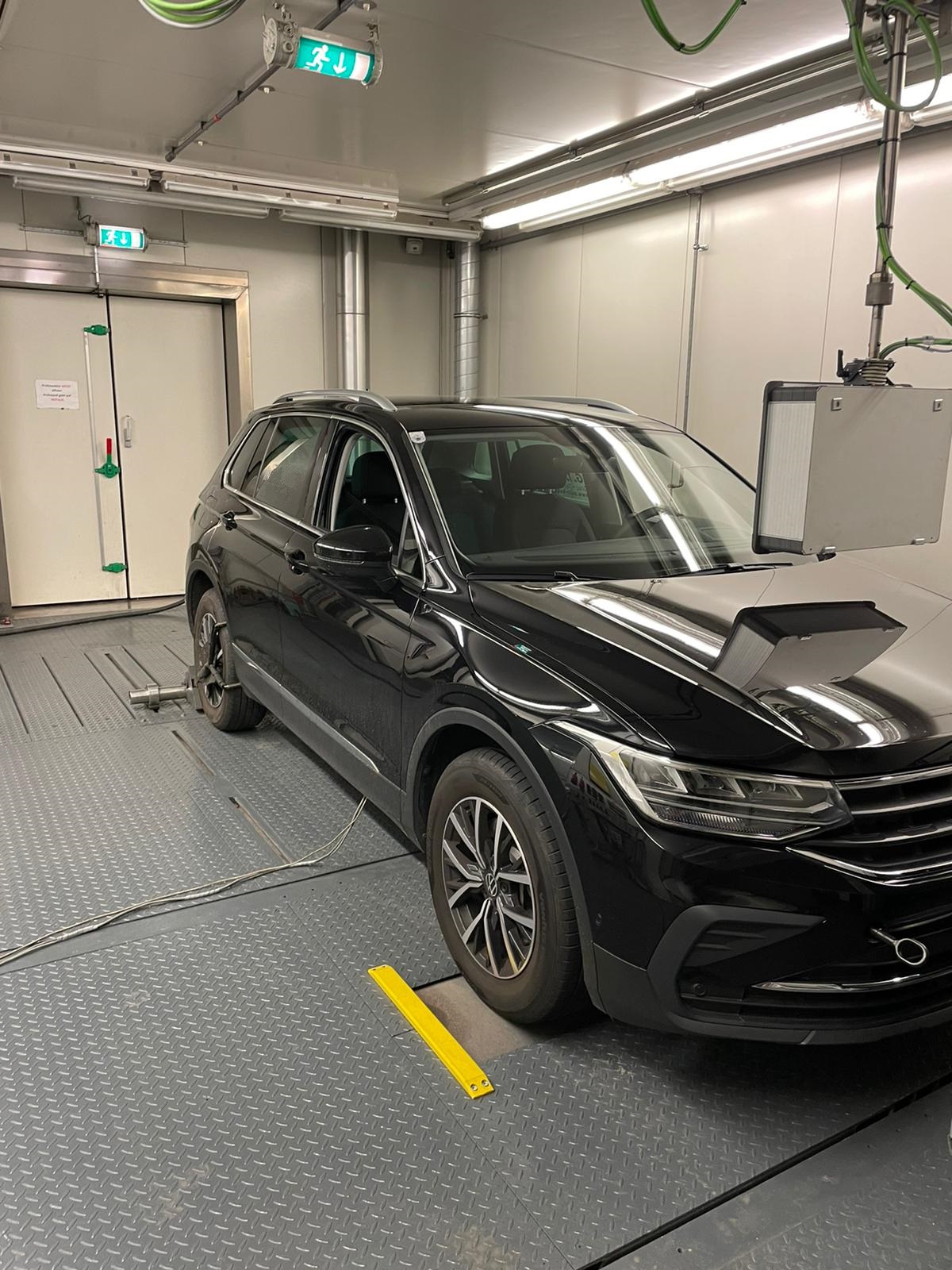

Chassis Dynamometer for Light Duty Vehicles
Technical Specifications
| Braking Power | 200kW asynchronous motor 48" roll |
| Max. Speed: | 200 km/h |
| Vehicle Mass: | up to 3500kg |
| Temperatur: | adjustable from -30°C to +40°C |
| Performance measurement | |
| Adjustable Humidity |
Download testbed desription and pricing as PDF.
Modes of Operation
The dynamometer can be run in stationary and transient operation. Both braking and towing operation is possible.
Stationary Operation
Constant traction or constant driving speed
Transient Operation
Simulation of driving resistance forces according to actual vehicle speed and acceleration based on settings for vehicle mass and load road parameters.
Emission Analysis
- Exhaust gas analysis from undiluted exhaust gas
- Instantaneous emission data (max. 2 Hz)
- FTIR for 30 exhaust gas components (regulated and non-regulated)
- Particle mass & particle number (CPC 23 nm, 10 nm und 4 nm)
- Brake- & tirewear
This testbed is operated in cooperation between Graz University of Technology and FVT mbh.
