On-Board Measurement Systems

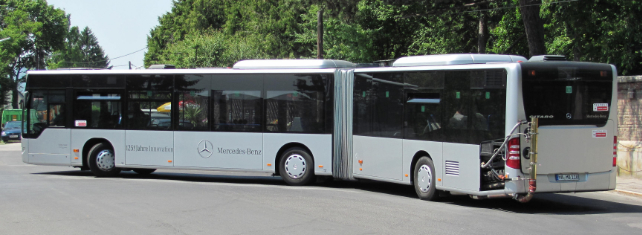

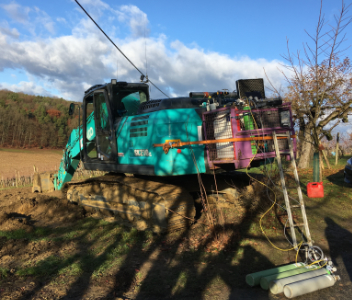

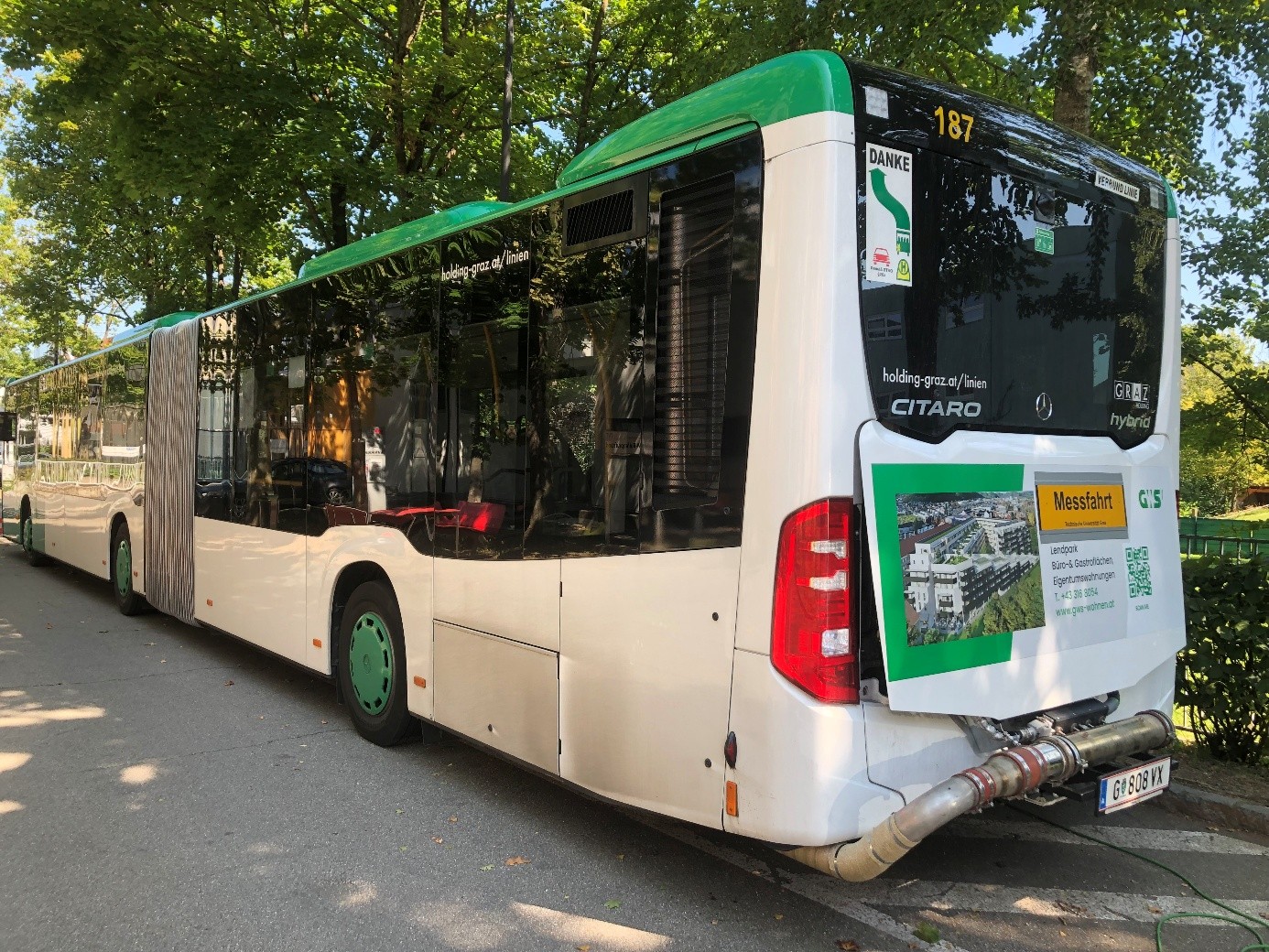

Different system for cars, light commercial vehicles (LCV), heavy duty vehicles and non-road mobile machinery (NRMM) are available. On-board measurements for in-service conformity can also be performed. Measurement procedure at FVT certified according to ISO 17025.

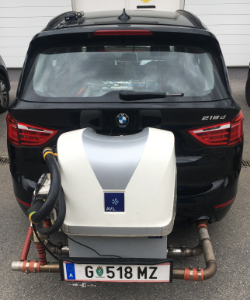

AVL M.O.V.E PEMS
| System: | AVL MOVE incl. PN PEMS |
|---|---|
| Measured species: | CO2, CO, NO2, NO, THC (for HDV) as well as particle number |
| Exhaust gas mass flow: | Exhaust Gas Mass Flow Meter (EFM) |
| Data recording: | Data logger for recording emission data and other cycle-relevant information such as speeds, temperatures, air pressure, humidity, GPS Position and ECU data |
IAG OFS mobile FTIR
| System: | IAG OFS |
|---|---|
| Gemessene Abgaskomponenten: | Acetylene, Acetaldehyde, 1,3 Butadiene, Butane, COS, CH4, CO2, CO, Ethane, Ethylene, Formaldehyde, Formic Acid, H2O, Methanol, N2O, NH3, NMHC, NOx (NO/NO2), Propane, Propylene, SO2, THC |
| Abgasmassenstrom: | Exhaust Gas Mass Flow Meter (EFM) |
| Datenaufzeichnung: | Data logger for recording emission data and other cycle-relevant information such as speeds, temperatures, air pressure, humidity, GPS Position and ECU data |
DTT PN Measurement System
| System: | DownToTen PN Measurement System |
|---|---|
| Gemessene Abgaskomponenten: | PN10, PN23 if required, dilution and sampling system with/without heated catalytic stripper for solid or total particel number measurment |
| Abgasmassenstrom: | Exhaust Gas Mass Flow Meter (EFM) |
| Datenaufzeichnung: | Data logger for recording emission data and other cycle-relevant information such as speeds, temperatures, air pressure, humidity, GPS Position and ECU data |
Download testbed description and pricing as PDF
The test systems are operated in cooperation between the Graz University of Technology and FVT mbH.
